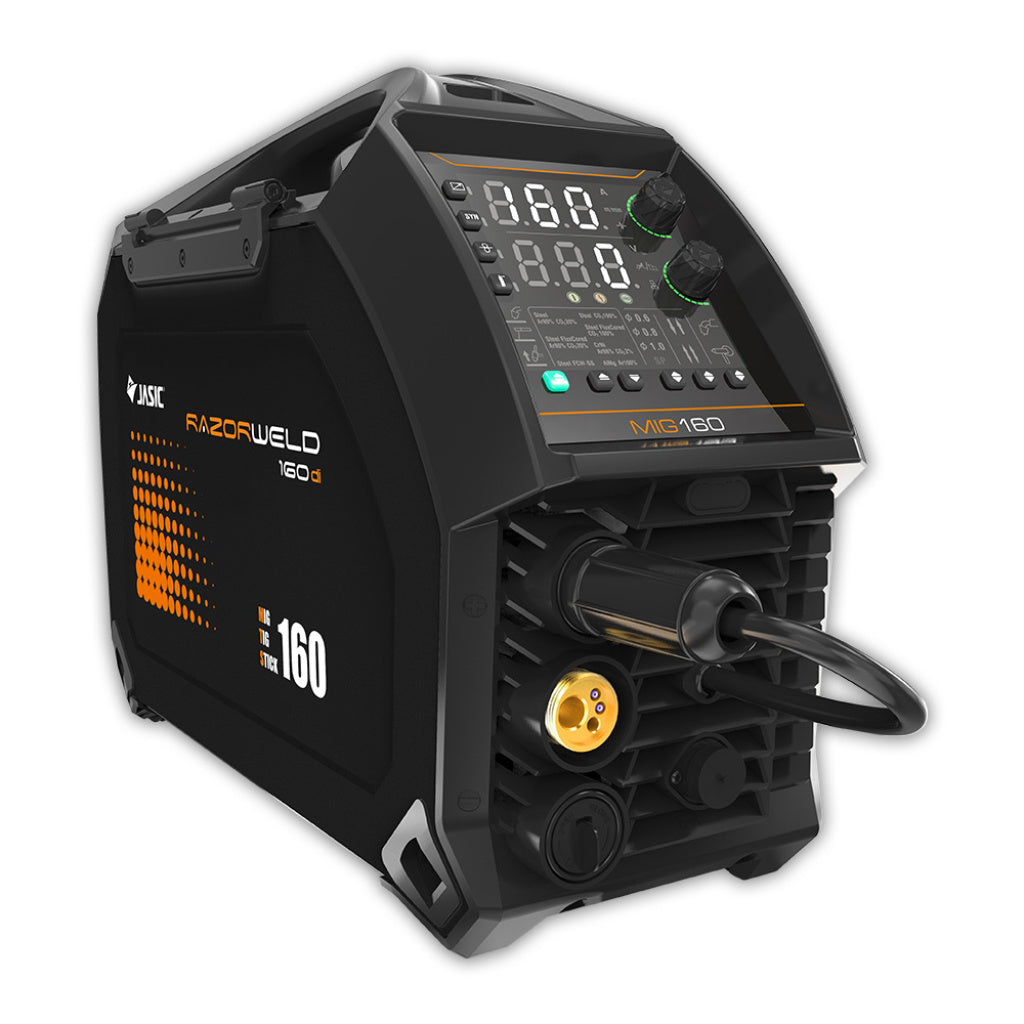

Razorweld RAZOR MULTI 160 Multiprocess Welder
Razorweld RAZOR MULTI 160 Multiprocess Welder
SKU: JRW160di
- Regular price
- Price: $1,075.00
- Regular price
- List Price:
- Sale price
- Price: $1,075.00
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION
Description
Bring professional multiprocess welding performance to the workshop or jobsite with the Razorweld RAZOR MULTI 160. This compact dual-voltage welder combines gas and gasless MIG, DC Lift Arc TIG, and Stick welding in one portable machine, making it a versatile choice for fabrication, automotive work, maintenance, farm repairs, and home workshops.
Intelligent synergic MIG programs simplify setup by coordinating welding parameters based on the selected wire, shielding gas, material, and thickness. Welders who prefer greater control can manually adjust settings such as voltage, wire-feed speed, inductance, and burnback.
The RAZOR MULTI 160 is spool-gun ready for aluminum MIG welding and accepts wire spools up to 11 pounds. DC Lift Arc TIG provides smooth, controlled arc initiation, while compatibility with an optional foot pedal allows hands-free amperage adjustments during TIG welding.
For Stick welding, adjustable Arc Force, Hot Start, and Anti-Stick functions help improve arc ignition and electrode control. An on-demand smart fan reduces unnecessary noise and dust intake, while power factor correction supports efficient operation. At approximately 37 pounds, the RAZOR MULTI 160 delivers dependable welding versatility without sacrificing portability.
Key Features
- Gas and gasless MIG, DC Lift Arc TIG, and Stick welding
- Dual-voltage 115V and 230V operation
- Up to 160 amps of MIG and TIG output
- Intelligent synergic MIG programs
- Spool-gun ready for aluminum MIG welding
- TIG foot-pedal compatible for remote amperage control
- Adjustable Arc Force, Hot Start, and Anti-Stick functions
- Power factor correction and on-demand smart-fan cooling
Specifications
| Specification | Details |
|---|---|
| Model | RAZOR MULTI 160 |
| Standard SKU | JRW160di |
| TIG-package SKU | JRW160diT |
| Welding processes | Gas/gasless MIG, DC Lift Arc TIG and Stick |
| Primary input voltage | 115/230V single phase |
| Supply plug | NEMA 6-50 |
| Rated output | 30% at 160A |
| MIG current range | 30–160A |
| TIG current range | 5–160A |
| Stick current range | 20–140A |
| MIG duty cycle at 105°F | 30% at 160A; 60% at 114A; 100% at 88A |
| TIG duty cycle at 105°F | 30% at 160A; 60% at 114A; 100% at 88A |
| Stick duty cycle at 105°F | 30% at 140A; 60% at 100A; 100% at 77A |
| MIG wire-size range | 0.023–0.035 in. |
| Maximum wire-spool size | 11 lb. |
| Stick-electrode range | 1/16–5/32 in. |
| Minimum generator | 10 kVA |
| Dinse connector | 35/50 |
| Protection class | IP21S |
| Insulation class | B |
| Certification | CSA/CAN |
| Dimensions | 22 × 8.6 × 16 in. |
| Machine weight | 37 lb. |
| Power-source warranty | 3 years |
The duty-cycle ratings above follow Razorweld’s newer product brochure, which lists 60% MIG output at 114A rather than the conflicting 144A figure shown in the online product table.
Welding Capacity
| Welding Process | Current Range | Published Thickness Range |
|---|---|---|
| MIG | 30–160A | 1/32–1/4 in. |
| DC Lift Arc TIG | 5–160A | 1/32–1/4 in. |
| Stick | 20–140A | 3/32–1/2 in. |
The RAZOR MULTI 160 is designed for materials including mild steel, stainless steel, cast iron, silicon bronze, aluminum, and copper. Aluminum MIG welding requires a compatible spool gun. Because the machine uses DC Lift Arc TIG rather than AC TIG, it is not intended for conventional TIG welding of aluminum.
Actual welding capacity may vary based on input voltage, material, joint preparation, shielding gas, filler metal, welding position, and operator technique.
What’s Included
Standard Package — JRW160di
- Razorweld RAZOR MULTI 160 welder
- 10-foot TWECO No. 2-style MIG torch
- Stick electrode-holder lead set
- Ground cable and clamp
- Gas regulator
- Power adapter
- Operating manual
TIG Package — JRW160diT
Includes everything in the Standard Package, plus a 12.5-foot WP17F TIG torch.
The spool gun and TIG foot pedal are compatible optional accessories and are not listed as standard package inclusions.
Manufacturer’s Warranty
The RAZOR MULTI 160 is backed by a three-year manufacturer’s parts-and-labor warranty on the power source, beginning on the original purchase date.
Eligible Razorweld MIG and TIG torches, ground cables, gas hoses, argon regulators, and interconnecting cables are covered for 90 days. Coverage applies to qualifying defects in materials and workmanship.
The warranty does not cover consumables, normal wear, misuse, improper maintenance, incorrect voltage, unauthorized electrical connections, improper installation, overloading, modifications, or repairs performed by an unauthorized service provider. Retain the original invoice as proof of purchase. All claims are subject to Razorweld’s complete warranty terms and approval.
