• Razorweld RAZOR MULTI 230Di 4-in-1 Multiprocess Welder

Razorweld

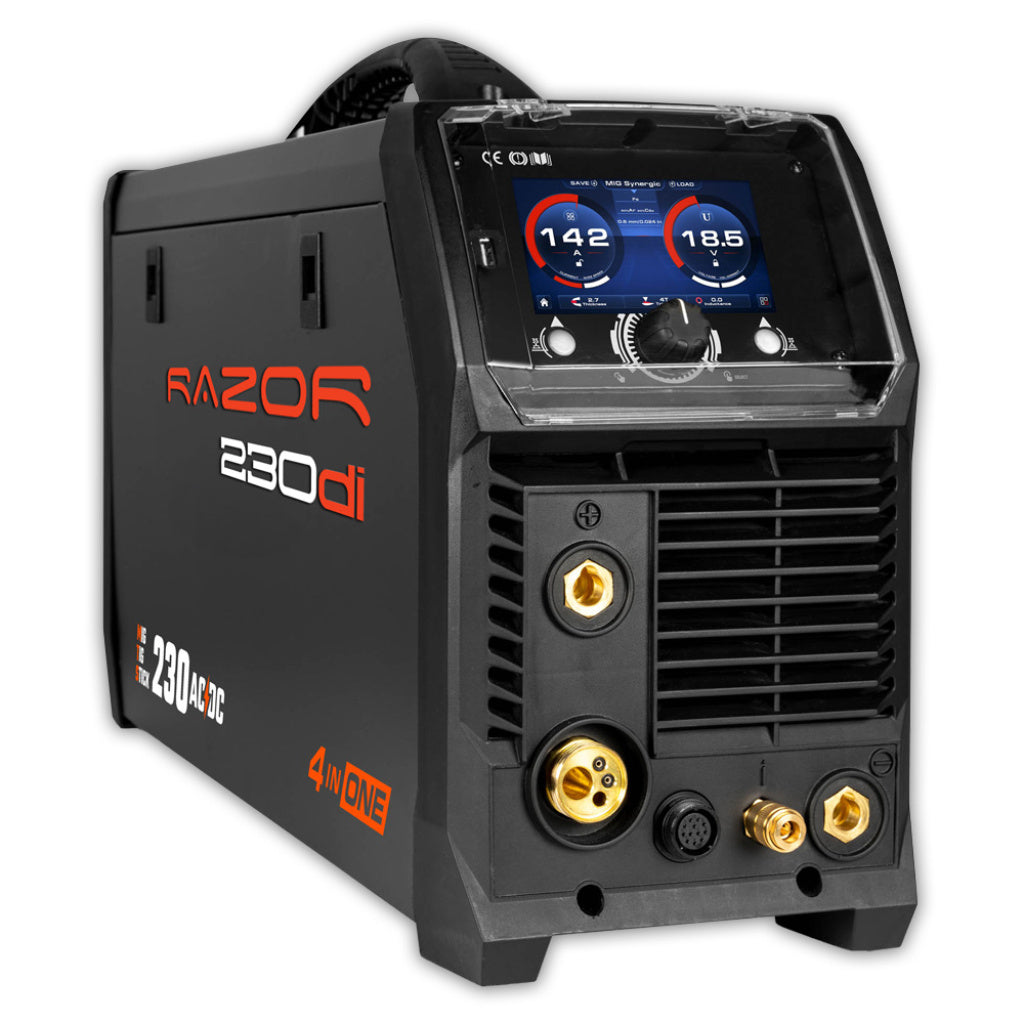

Razorweld RAZOR MULTI 230Di 4-in-1 Multiprocess Welder

Razorweld RAZOR MULTI 230Di 4-in-1 Multiprocess Welder

SKU: JRW230di

Price: $2,695.00
List Price:
Price: $2,695.00
View Cart
Description

Take on a wide range of fabrication, repair, and maintenance projects with the Razorweld RAZOR MULTI 230Di. This dual-voltage multiprocess welder combines gas and gasless MIG, high-frequency AC/DC TIG, Pulse TIG, and Stick welding in one powerful 230-amp platform. It is built for welding mild steel, stainless steel, aluminum, silicon bronze, copper, and cast iron.

A large 5-inch LCD screen and synergic MIG and TIG programs simplify machine setup while still giving experienced welders control over essential parameters. MIG cycle adjustments include pre- and post-gas flow, arc ignition speed, burnback, arc start, and crater fill. For TIG work, Mixed AC/DC, Pulse TIG, TIG Smart Set, and the included foot pedal provide precise control over heat and amperage.

The RAZOR MULTI 230Di is also spool-gun ready for aluminum MIG welding. Heat Control Trigger mode allows you to switch to a preset base current during a weld, while Pulse Stick helps control heat, reduce spatter, and improve slag removal.

Power factor correction, smart-fan cooling, generator compatibility, and a portable 44-pound design make this machine equally suited to professional workshops and demanding jobsites.

Key Features

  • Gas and gasless MIG, HF AC/DC TIG, Pulse TIG, and Stick welding
  • Dual-voltage 110/220V single-phase operation
  • 5-inch LCD screen with synergic MIG and TIG programs
  • MIG weld-cycle controls with arc start and crater-fill adjustments
  • Mixed AC/DC, Pulse TIG, and TIG Smart Set functions
  • Heat Control Trigger mode for manual heat-input control
  • Spool-gun ready for aluminum MIG welding
  • Included TIG foot pedal, smart-fan cooling, and power factor correction


Specifications
Specification Details
Model RAZOR MULTI 230Di
SKU JRW230di
Welding processes Gas/gasless MIG, HF AC/DC TIG, Pulse TIG and Stick
Primary input voltage 110/220V single phase
Supply plug NEMA 6-50
MIG output range at 230V 25–230A
TIG output range at 230V 10–230A
Stick output range at 230V 10–200A
MIG duty cycle 25% at 230A
TIG duty cycle at 105°F 35% at 230A; 60% at 175A; 100% at 136A
Stick duty cycle at 105°F 25% at 200A; 60% at 130A; 100% at 100A
MIG wire diameter 0.023–0.045 in.
Maximum wire-spool size 11 lb.
Stick-electrode range 3/32–5/32 in.
Minimum generator 10 kVA
Dinse connector 35/50
Protection class IP21
Insulation class H
Certification CSA/CAN
Dimensions 26 × 8.5 × 13 in.
Machine weight 44 lb.
Power-source warranty 3 years

The published output ranges and duty-cycle ratings are based on 230V operation.

Welding Capacity
Process Published Current Range Published Welding Thickness
MIG at 230V 25–230A 3/64–7/16 in.
AC/DC TIG at 230V 10–230A 3/64–5/16 in.
Stick at 230V 10–200A 5/64–1/2 in.

Actual welding capacity will vary based on the material, joint design, welding process, shielding gas, filler metal, input power, and operator technique.

What’s Included
  • Razorweld RAZOR MULTI 230Di welder
  • 10-foot TWECO No. 2-style MIG torch
  • 12.5-foot WP17F TIG torch
  • TIG foot pedal
  • Stick arc-lead set
  • Ground cable and clamp
  • Gas regulator
  • Power adapter
  • Operating manual

A compatible spool gun is sold separately.

Manufacturer’s Warranty

The Razorweld RAZOR MULTI 230Di is backed by a three-year manufacturer’s parts-and-labor warranty on the power source.

The included MIG and TIG torches, ground cable, gas regulator, gas hoses, and eligible interconnecting cables are covered for 90 days from the original purchase date.

Warranty coverage applies to qualifying defects in materials and workmanship. It does not cover consumables, normal wear, misuse, improper maintenance, incorrect voltage, unauthorized electrical connections, improper installation, modifications, or repairs performed by an unauthorized service provider.

Retain the original order confirmation or invoice as proof of purchase. All claims are subject to Razorweld’s complete warranty terms and approval.
