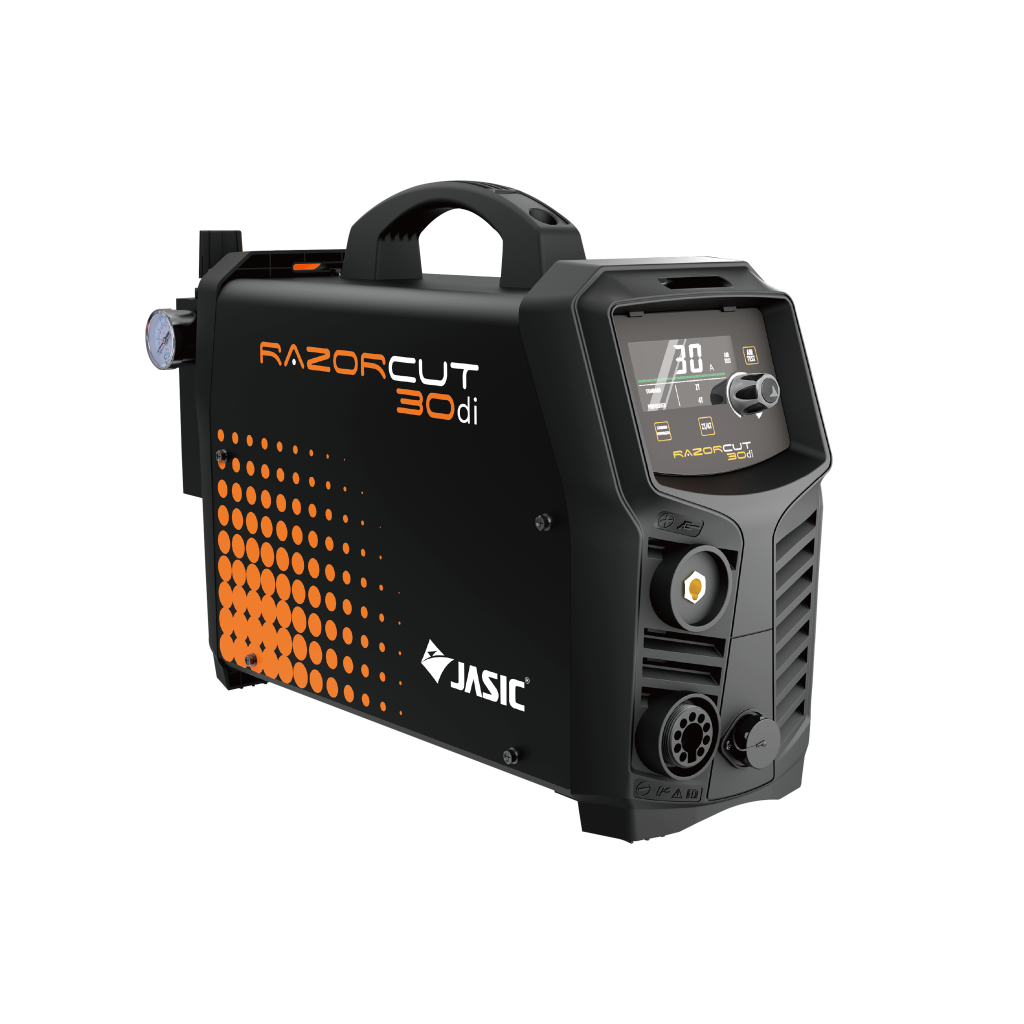

Razorweld RAZORCUT 30Di Dual-Voltage Plasma Cutter
Razorweld RAZORCUT 30Di Dual-Voltage Plasma Cutter
SKU: JRWCUT30di
- Regular price
- Price: $715.00
- Regular price
- List Price:
- Sale price
- Price: $715.00
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION
Description
Bring clean, controlled plasma cutting to the workshop or jobsite with the Razorweld RAZORCUT 30Di. This compact 30-amp plasma cutter operates on either 115V or 230V single-phase power, providing added flexibility for garages, maintenance facilities, fabrication shops, and mobile work environments. Weighing just 19 pounds, it is easy to transport without sacrificing the controls needed for dependable everyday cutting.
Pilot arc ignition provides controlled arc starts, while standard and perforated cutting modes let you move between solid sheet metal and materials such as mesh or fencing. Selectable 2T and 4T torch controls help reduce hand fatigue during longer cuts, and the clear digital interface makes amperage adjustments easy to see and manage.
The RAZORCUT 30Di delivers clean cuts through mild steel up to 5/16 inch and severance cuts up to 1/2 inch. It is also CNC-ready, allowing connection to a compatible plasma table for automated cutting projects.
A 19.5-foot plasma torch, ground cable, power adapter, air regulator, and operating manual are included. The machine requires a clean, dry external compressed-air supply.
Key Features
- Dual-voltage 115V and 230V operation
- Adjustable 20–30 amp cutting output
- Pilot arc ignition for controlled arc starts
- Up to 5/16-inch clean cuts in mild steel
- Standard and perforated-material cutting modes
- Selectable 2T and 4T torch controls
- CNC connection for compatible plasma tables
- Digital interface, air-test function, and over-temperature warning
Specifications
| Specification | Details |
|---|---|
| Model | RAZORCUT 30Di |
| SKU | JRWCUT30di |
| Cutting process | Plasma cutting |
| Primary input voltage | 115/230V single phase |
| Cutting-current range | 20–30A |
| Rated input power | 4.6 kVA |
| Rated output voltage | 92V |
| Duty cycle | 35% at 30A at 104°F |
| Arc ignition | Pilot arc |
| Cutting modes | Standard and perforated |
| Torch controls | 2T and 4T |
| CNC connection | Yes |
| External air required | Yes—clean, dry compressed air |
| Minimum generator | 9 kVA |
| Supply plug | NEMA 6-50 with power adapter |
| Dinse connector | 10/25 |
| Protection class | IP21S |
| Insulation class | B |
| Certification | CSA/CAN |
| Dimensions | 21 × 6.5 × 13.5 in. |
| Weight | 19 lb. |
| Power-source warranty | 3 years |
Cutting Capacity
| Material | Clean-Cut Capacity | Severance Capacity |
| Mild steel | 5/16 in. | 1/2 in. |
| Aluminum | 1/4 in. | 5/16 in. |
| Stainless steel | 1/4 in. | 5/16 in. |
Actual cutting performance may vary based on input power, air quality, material condition, consumable condition, and travel speed. A severance cut represents maximum cutting capacity and may require additional finishing.
What’s Included
- Razorweld RAZORCUT 30Di plasma cutter
- 19.5-foot J45XC-4 plasma torch
- Ground cable and clamp
- Air regulator
- Power adapter
- Fitted power plug
- Operating manual
An external air compressor is not included and is required to operate the plasma cutter.
Manufacturer’s Warranty
The Razorweld RAZORCUT 30Di is backed by a three-year manufacturer’s parts-and-labor warranty on the power source. The included plasma torch and ground cable are covered for 90 days from the original purchase date.
Coverage applies to qualifying defects in materials and workmanship. It does not cover consumables, normal wear, misuse, improper cleaning or maintenance, incorrect voltage, unauthorized modifications, improper installation, or repairs performed by an unauthorized service provider.
Retain the original order confirmation or invoice as proof of purchase. All warranty claims are subject to Razorweld’s complete warranty terms and approval.
