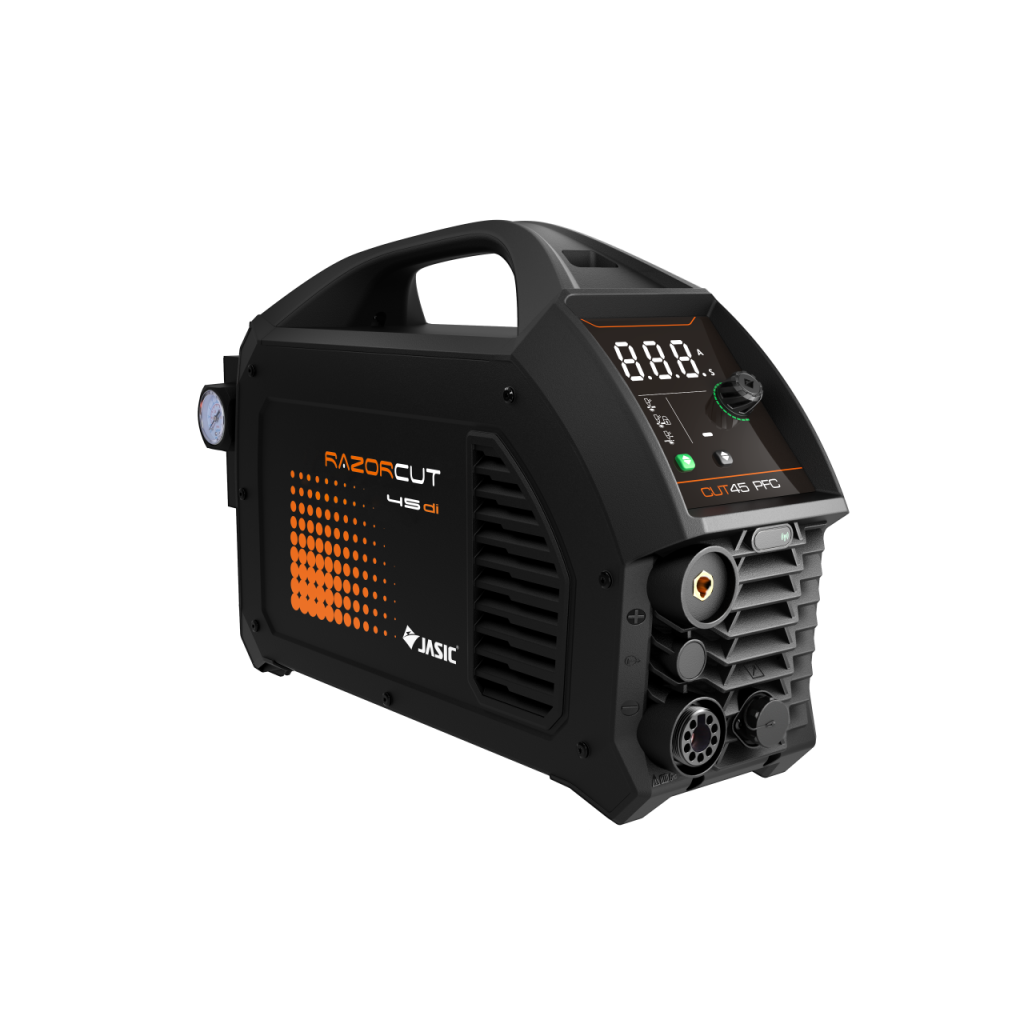

Razorweld RAZORCUT 45Di Digital Plasma Cutter
Razorweld RAZORCUT 45Di Digital Plasma Cutter
SKU: JRWCUT45di
- Regular price
- Price: $1,210.00
- Regular price
- List Price:
- Sale price
- Price: $1,210.00
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION
Description
Built for fabrication shops, mobile repair work, automotive projects, and demanding home workshops, the Razorweld RAZORCUT 45Di delivers professional plasma-cutting power in a compact 22-pound package. Its dual-voltage design operates on 115V or 230V power, providing up to 30 amps on 115V and the full 45-amp output on 230V.
The non-high-frequency pilot arc starts without touching the workpiece, giving you greater control when cutting curved, uneven, solid, or perforated metal. Select between 2T, 4T, and mesh-cutting modes to match the application, while the digital control panel makes output adjustments clear and straightforward.
On 230V power, the RAZORCUT 45Di is rated for a quality cut through carbon steel up to 1/2 inch and severance up to 1 inch. Power factor correction helps improve input efficiency and makes the unit more generator-friendly, while the on-demand smart fan reduces unnecessary noise and limits dust intake when the machine is idle.
A built-in CNC connection port expands the machine’s capabilities for use with a compatible plasma table. With a 19.5-foot plasma torch, ground cable, power adapter, and three-year power-source warranty, the RAZORCUT 45Di is ready for serious cutting in the shop or on the jobsite.
Key Features
- Dual-voltage 115V and 230V operation
- Adjustable 20–45 amp cutting output
- Non-high-frequency pilot arc ignition
- 2T, 4T, and mesh-cutting modes
- Digital display with straightforward amperage control
- Power factor correction for improved input efficiency
- Smart on-demand cooling fan
- CNC-ready connection for compatible plasma tables
Specifications
| Specification | Details |
|---|---|
| Model | RAZORCUT 45Di |
| SKU | JRWCUT45di |
| Process | Plasma cutting |
| Input voltage | 115/230V dual voltage |
| Input frequency | 50/60 Hz |
| Output on 115V | 20–30A |
| Output on 230V | 20–45A |
| Rated input current | 31A at 115V; 23A at 230V |
| Rated input capacity | 3.6 kVA at 115V; 5.3 kVA at 230V |
| Arc ignition | Non-HF pilot arc |
| Rated duty cycle | 30% |
| Power factor | 0.99 |
| Cutting modes | 2T, 4T and mesh |
| CNC connection | Yes |
| Protection class | IP23S |
| Insulation class | H |
| Dimensions | 21.5 × 6.55 × 13.5 in. |
| Net weight | 22 lb. |
| Air supply | Clean, dry external compressed air required |
| Warranty | 3 years on the power source |
Cutting Capacity
| Material and Input | Quality-Cut Capacity | Severance Capacity |
|---|---|---|
| Carbon steel at 115V | 1/4 in. | 3/8 in. |
| Carbon steel at 230V | 1/2 in. | 1 in. |
| Aluminum* | 3/8 in. | 1/2 in. |
| Stainless steel* | 3/8 in. | 1/2 in. |
What’s Included
- Razorweld RAZORCUT 45Di plasma cutter
- 19.5-foot plasma-cutting torch
- Ground cable and clamp
- Power adapter
- Operating manual
The CNC connection is built into the machine for use with a compatible CNC plasma table.
Manufacturer’s Warranty
The RAZORCUT 45Di is backed by a three-year manufacturer’s parts-and-labor warranty on the power source. The included plasma torch and ground cable are covered for 90 days from the original purchase date.
Coverage applies to qualifying defects in materials and workmanship. It does not cover consumables, normal wear, misuse, improper installation, incorrect voltage, inadequate maintenance, unauthorized modifications, or repairs completed by an unauthorized service provider. Customers should retain their original invoice as proof of purchase. All claims are subject to Razorweld’s complete warranty terms and approval.
