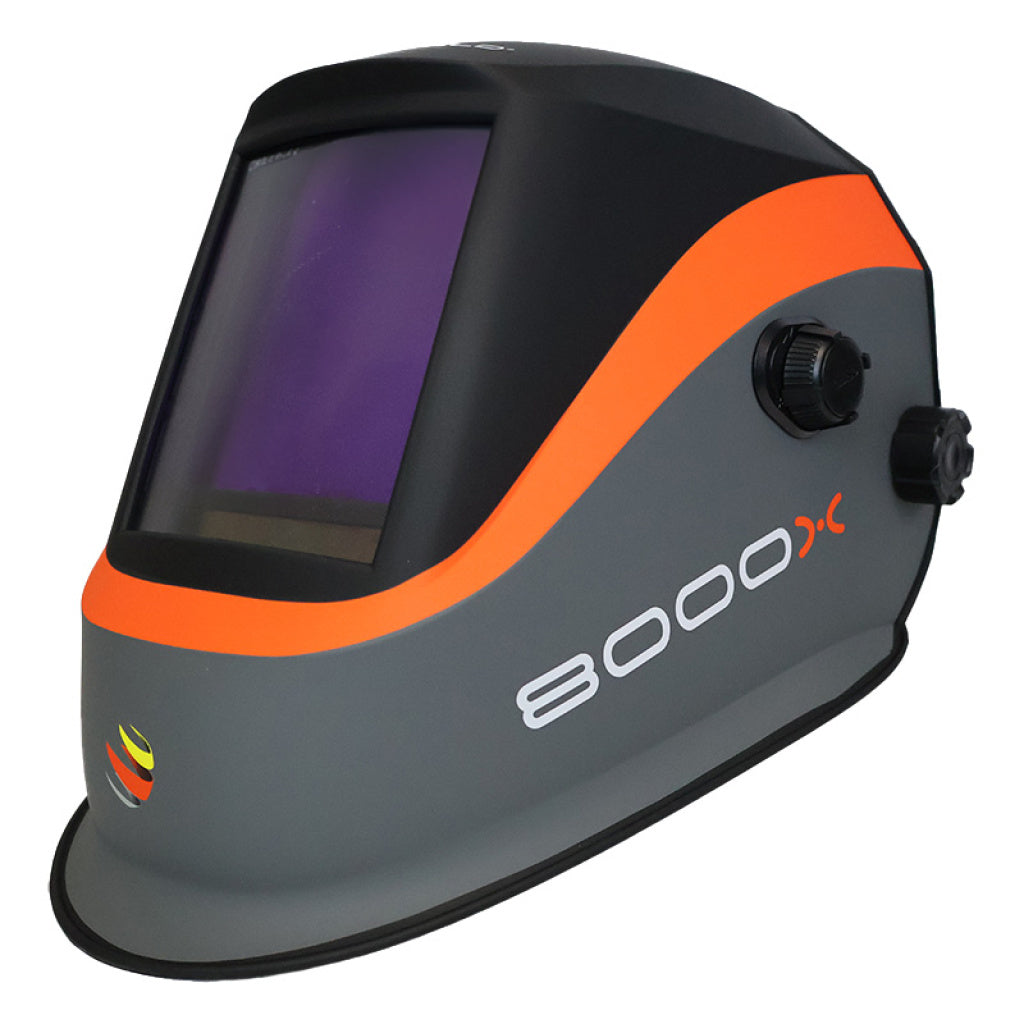

Razorweld RW8000X Auto-Darkening Welding Helmet
Razorweld RW8000X Auto-Darkening Welding Helmet
SKU: RW8000X
- Regular price
- Price: $240.00
- Regular price
- List Price:
- Sale price
- Price: $240.00
- Unit price
- per
Couldn't load pickup availability
PRODUCT DESCRIPTION
Description
Gain a wider, clearer view of your work with the Razorweld RW8000X Auto-Darkening Welding Helmet. Its oversized 4.04 × 4.04-inch viewing area provides excellent visibility, while RazorBlue True Color lens technology delivers a more natural view of the weld pool, workpiece, and surrounding area.
The auto-darkening filter carries a premium 1/1/1/1 optical classification and uses four arc sensors plus an ambient-light sensor for reliable lens activation. Choose automatic shade control for convenient adjustment or use manual mode to select the shade that matches your welding or cutting application.
An external grind button allows you to switch into grinding mode without removing the helmet. Adjustable sensitivity and delay settings help tailor the lens response to different amperages, environments, and welding processes. A lock-shade function and memory feature provide additional control for frequently performed tasks.
Solar-assisted power, two replaceable batteries, a low-battery indicator, and multi-adjustable headgear make the RW8000X a practical choice for professional fabrication, maintenance, and demanding home workshops.
Key Features
- Large 4.04 × 4.04-inch viewing area
- Premium 1/1/1/1 optical classification
- RazorBlue True Color lens technology
- Four arc sensors plus one ambient-light sensor
- Automatic and manual shade-control modes
- External grind-mode button
- Adjustable sensitivity and dark-to-light delay
- Lock-shade and memory functions
Specifications
| Specification | Details |
|---|---|
| Model | RW8000X |
| Product type | Auto-darkening welding helmet |
| Optical classification | 1/1/1/1 |
| ADF cartridge size | 4.5 × 5.25 in. |
| Viewing area | 4.04 × 4.04 in. |
| Light-state shade | DIN 3 |
| Automatic shade mode | DIN 7–13 with DIN 3 light state |
| Manual shade mode | DIN 5–13 with DIN 3 light state |
| Automatic-shade deviation | ±2 shade levels |
| UV/IR protection | Up to DIN 15 at all times |
| Light-to-dark switching time | 0.04 ms |
| Dark-to-light delay | Five levels, adjustable from 0.1–0.9 seconds |
| Sensitivity adjustment | Five levels from low to high |
| Arc sensors | 4 |
| Ambient-light sensors | 1 |
| Grinding function | External grind mode |
| Lock-shade function | Yes |
| Automatic shade | Yes |
| Power supply | Solar cell and two replaceable CR2450 batteries |
| Low-battery indicator | Yes |
| Operating temperature | 14°F–149°F |
| Inside protection lens | 4.25 × 4.25 in. |
| Outside protection lens | 4.5 × 5.25 in. |
| Headgear | Multi-adjustable |
Supported Processes & Shade Range
| Application | Helmet Capability |
|---|---|
| Stick welding | Variable shade protection for covered-electrode welding |
| MIG welding | Supports MIG welding across the appropriate amperage range |
| MAG welding | Supports gas-shielded metal arc welding |
| TIG welding | Suitable when the correct sensitivity and shade are selected |
| Plasma cutting | Variable shade control for plasma-cutting applications |
| Micro-plasma welding | Supported within the manufacturer’s recommended shade ranges |
| Air-carbon arc gouging | Supported with the appropriate dark shade |
| Grinding | Dedicated external grind function |
The correct shade must be selected according to the welding process and operating amperage. The helmet is not intended for overhead welding, laser welding or cutting, or oxyacetylene welding or cutting. Impact-resistant safety glasses or goggles meeting applicable ANSI requirements should always be worn underneath the helmet.
What’s Included
- Razorweld RW8000X auto-darkening welding helmet
- One replacement outer protection lens
- One replacement inner protection lens
- Protective storage bag
- Operating manual
Manufacturer’s Warranty
Under Razorweld’s current warranty terms, the RW8000X helmet’s outer shell is covered for two years, while the auto-darkening filter is covered for one year from the original purchase date.
Coverage applies to qualifying defects in materials and workmanship. It does not cover normal wear, misuse, improper cleaning or maintenance, unauthorized replacement parts, modifications, or damage caused by improper use.
Retain the original order confirmation or invoice as proof of purchase. All claims are subject to Razorweld’s complete warranty terms and approval.
